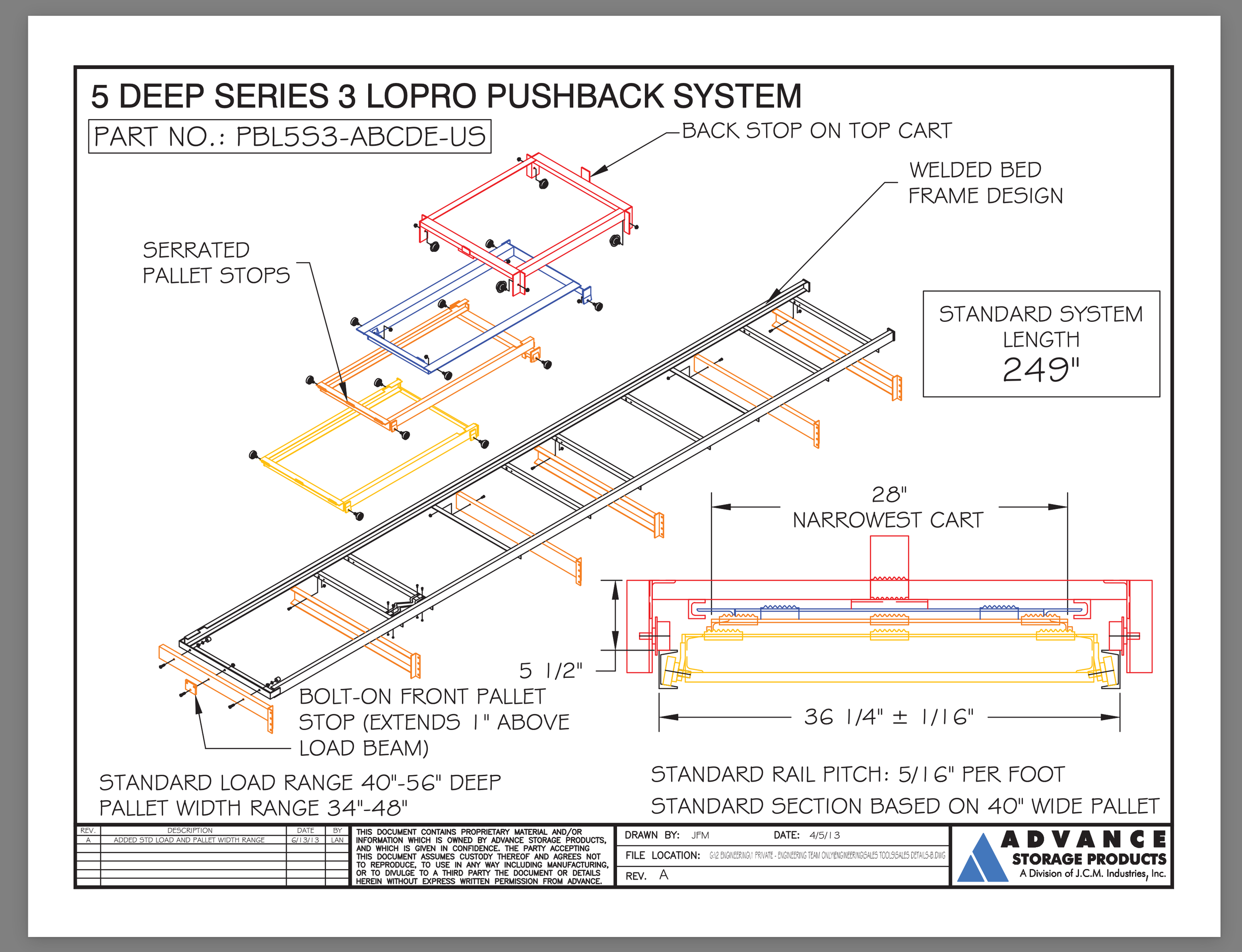

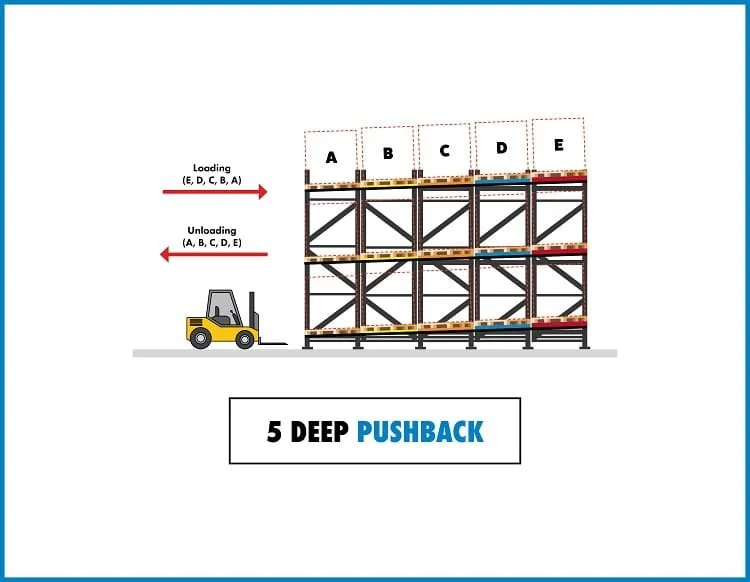

5 Deep Lo Pro™ Pushback
5-Deep Lo-Pro™ Pushback is designed for operations seeking maximum density without moving into the most extreme lane depths. It is well suited for environments with predictable pallet flow and sufficient SKU volume per lane.
Key Benefits:
Significantly reduces aisle count and increases cube utilization
Maximizes storage density for high-volume SKUs
Reduces travel distance for lift trucks
Excellent solution where floor space is constrained or expensive
Industry Applications:
Beverage: High-volume pallet storage with consistent replenishment patterns
Food Distribution: Dense reserve storage for slower-moving SKUs stored in larger quantities
Cold Storage: High-density solution where cubic footage cost drives design decisions
How To Select The Right Depth Of Pushback:
As a general rule of thumb, for pushback systems to be efficiently utilized, there must be roughly 4-5 times the number of SKU’s of an item in the facility than the depth of the storage lane. For example, if using 2 deep pushback, there should be at least 8-10 of the same SKU with in the facility, likewise for 6 deep to be well utilized, you would need 24-30 of the same SKU’s. Oftentimes facilities will be designed with a combination of different depths of storage (selective to 6 deep) to make best use of the floor space.
