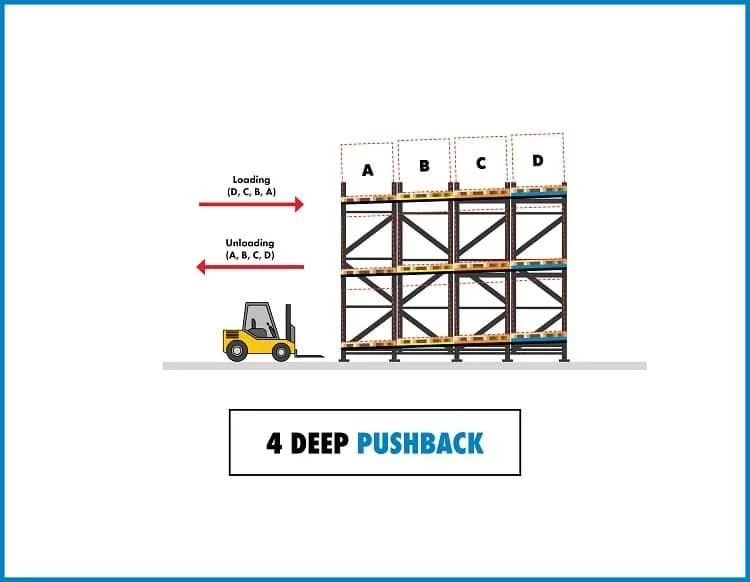

4 Deep Lo Pro™ Pushback
4-Deep Lo-Pro™ Pushback is one of the most commonly used pushback depths, offering an optimal balance between density and accessibility. It significantly reduces aisle requirements while remaining easy to manage operationally.
Key Benefits:
Substantial increase in pallet positions per bay
Strong ROI through aisle reduction without excessive lane depth
Maintains good pallet visibility and control
Versatile design suitable for a wide range of pallet weights and SKUs
Industry Applications:
Food Distribution: Dense reserve storage feeding case-pick operations
Beverage: Supports high-volume SKUs with consistent pallet flow
Grocery: Effective for mixed SKU profiles where density and speed are equally important
How To Select The Right Depth Of Pushback:
As a general rule of thumb, for pushback systems to be efficiently utilized, there must be roughly 4-5 times the number of SKU’s of an item in the facility than the depth of the storage lane.
For example, if using 2 deep pushback, there should be at least 8-10 of the same SKU with in the facility, likewise for 6 deep to be well utilized, you would need 24-30 of the same SKU’s. Oftentimes facilities will be designed with a combination of different depths of storage (selective to 6 deep) to make best use of the floor space.
